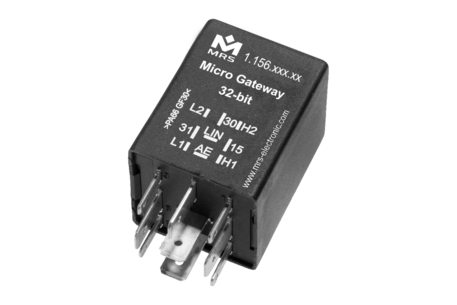

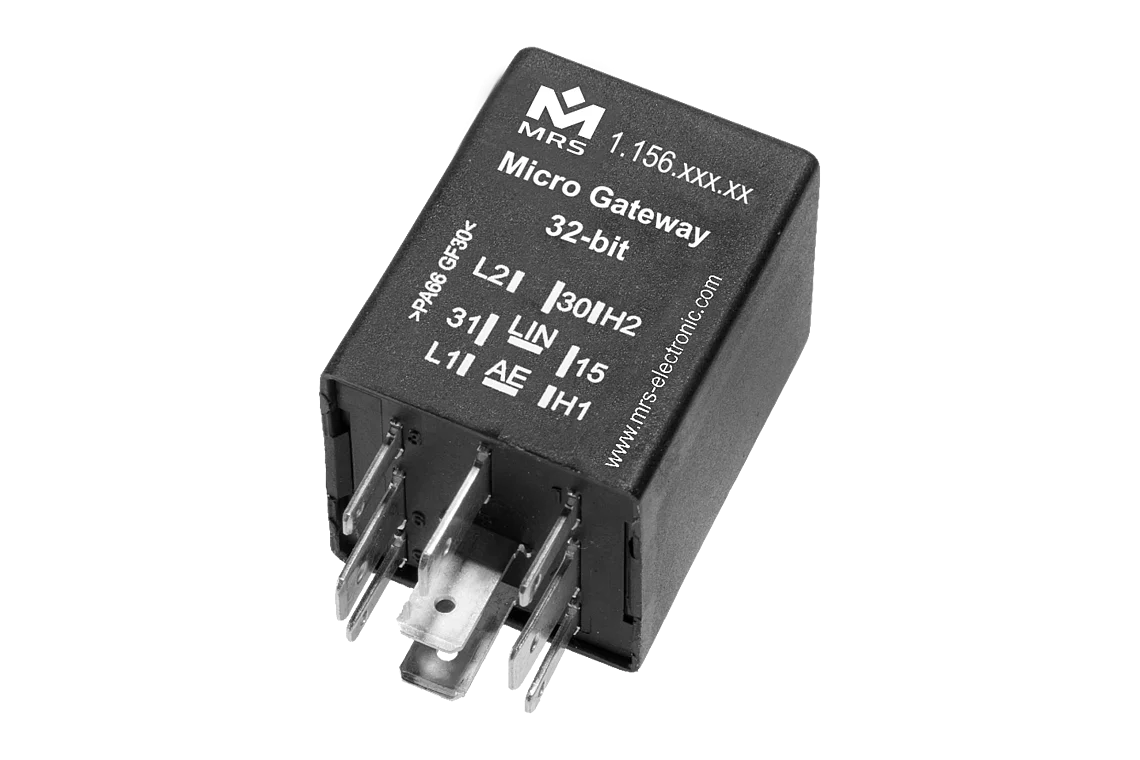

The new Micro Gateway is a compact gateway for automotive applications. The core piece, the 32-bit processor, provides you with higher performance and thus secure routing and gateway functionality at high bus loads. Thanks to the reduced housing size, you can now also use the gateway in standard relay boxes with a height of 40 mm. The 2 I/Os are now also PWM capable. Implement larger and more complex programs and applications by increasing the flash memory to 2 MB. The RAM has also been increased from 12 KB to 256 KB. This gives you even more memory to temporarily store the higher amount of data. The Micro Gateway is available in the following variants: 2 x CAN bus + 2 x LIN or 2 x I/Os. The CAN/LIN version offers you the possibility to integrate 12 V LIN sensors, for example for the operation of a 12 V rain sensor in a truck. This function is only available in a separate version. The module is also CAN FD capable.
Use the new Micro Gateway, the 2nd generation of the Product of our MRS 32-bit generation, as a central contact point for all control units in your automotive applications. With our software tool Applics Studio you can program the functions yourself quickly and easily.
Name | Value |
---|---|
Weight | 30 g |
Dimensions | 30 × 30 × 40 mm |
Housing material | Plastic PA 66GF30 |
Connector type | Base plate 9-pin |
Type-approval number | 06 9178 |
Type-approval | ECE R10 |
In-/Outputs (total) | 2 |
Protection class | IP 6K8 |
Name | Value |
---|---|
Number of pins | 9 |
In-/Outputs (total) | 2 |
I/Os | 2 |
Inputs (total) | 2 |
Inputs (digital) | 2 |
Inputs (analog) | 2 |
Outputs (total) | 2 |
Outputs (PWM capable) | 2 |
Outputs (digital) | 2 |
Processor family | S32K148 |
Processor | 32 bit |
CAN interfaces | 2 |
LIN interfaces | 2 |
Temperature range | -40 to 85 °C |
Overload protection (≥) | 33 V |
Current consumption | 70 mA |
Quiescent current (24V) | 100 µA |
Quiescent current (12V) | 80 µA |
Total Inputs and outputs | Variant with I/O: 2 | Variant without I/O: 0 |
Inputs | Depending on assembly options: Analog input 0...32 V | Digital input 0... 10 V |
Outputs | Configurable as: Digital, positive switching (high side) | PWM output (3 Hz…1000 Hz) |
Name | Model | Order no. | ||
---|---|---|---|---|
Micro Gateway 32-bit | 2xCAN 1xLIN 12V OUT | LIN Potential LIN2: 12 V | operating voltage range 15-32 V | 1.156.200.2600 | ||
Micro Gateway 32-bit | 2xCAN & 2xLIN | LIN Potential LIN2: KL30 LIN0: KL30 | operating voltage range 9-32 V | 1.156.300.0000 | ||
Micro Gateway 32-bit | 2xCAN & 2xLIN (12V LIN2) | LIN Potential LIN2: 12V LIN0: KL30 | operating voltage range 15-32 V | 1.156.200.2000 | ||
Micro Gateway 32-bit | 2xCAN & 1xLIN | LIN Potential LIN0: KL30 | operating voltage range 9-32 V | 1.156.300.4000 | ||
Micro Gateway 32-bit | 2xCAN 2IO | operating voltage range 9-32 V | 1.156.300.4400 | ||
Micro Gateway 32-bit | 2xCAN 2AI | operating voltage range 9-32 V | 1.156.300.5500 | ||
Micro Gateway 32-bit | 2xCAN & 2xLIN (2x 120R) | LIN Potential LIN2: KL30 LIN0: KL30 | operating voltage range 9-32 V | 1.156.311.0000 | ||
Micro Gateway 32-bit | 2xCAN (2x 120R) | operating voltage range 9-32 V | 1.156.311.5500 |
