MConn Mini
go to order options (1157)

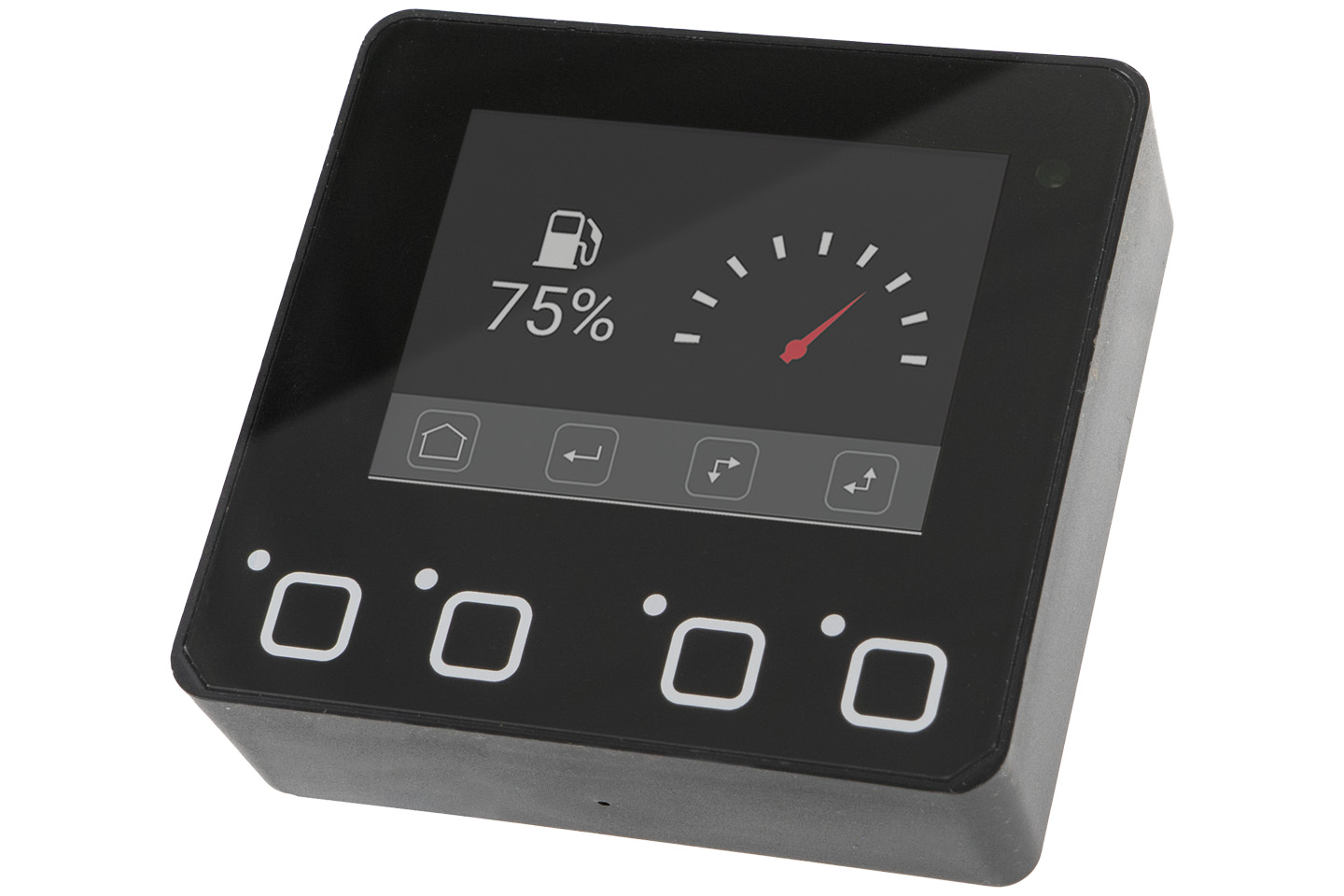

With its 2.4-inch color display, the MRS MConn Mini is the smallest of the MConn series. The product can be programmed according to your requirements and can be used for a wide range of applications, including as a display outside the driver's cab. You can freely define your desired functions for the 4 capacitive buttons.

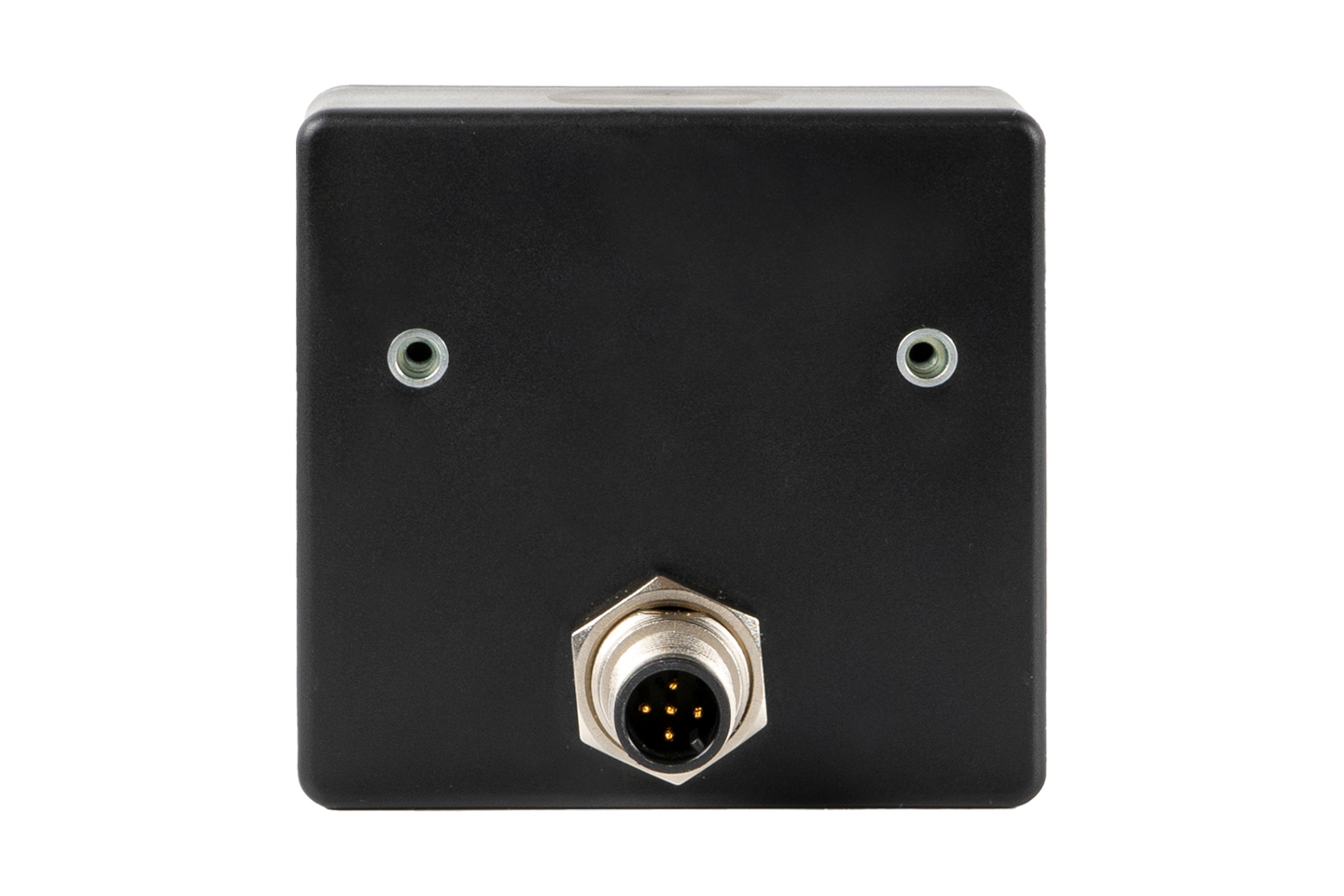

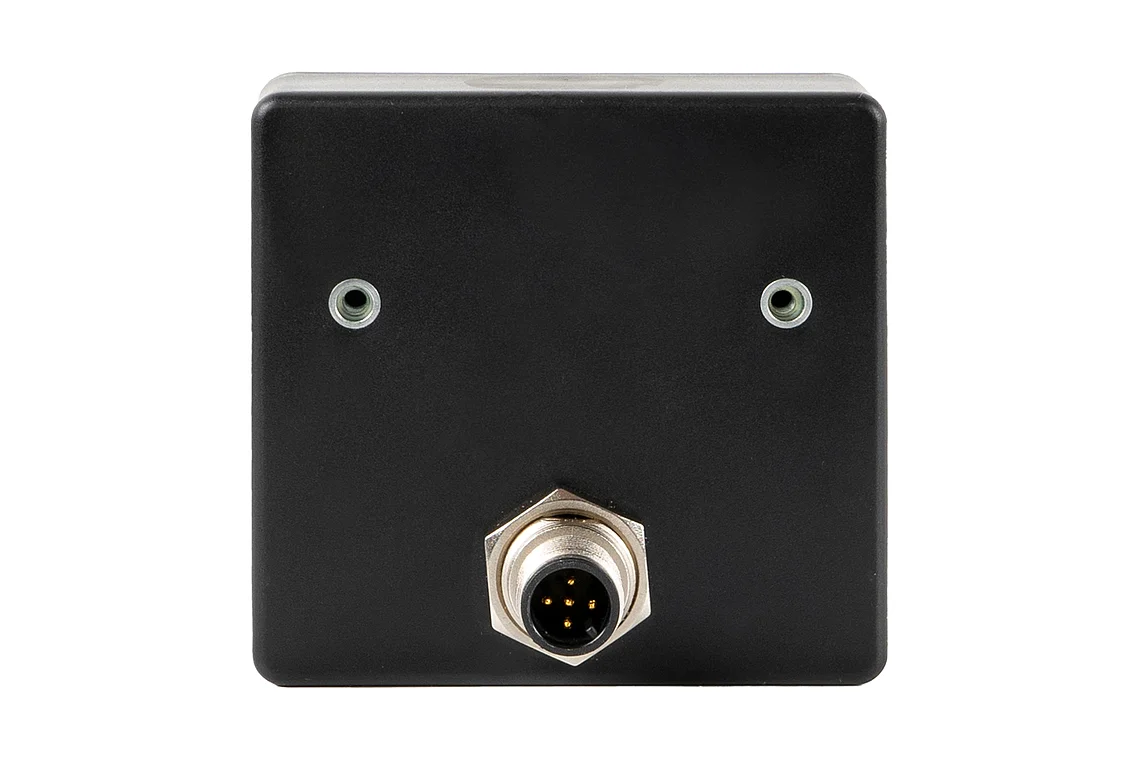

As a cost-efficient solution, the MConn Mini is generally used to record and display sensor data. With the aid of a light sensor, the display also measures the light values of the environment and thus regulates the background lighting. The MConn Mini is also available as a variant with a waterproof NMEA2000 connector and is thus even better protected against external influences.
Technical details
Interfaces
| CAN interface(s) | 1 |
|---|---|
| LIN interface(s) | 1 |
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | ABS housing |
| Dimensions | 73.5 × 70 × 23 mm |
Programming
| Programming software | MRS Applics Studio |
|---|
General
| Temperature range | -20 to +60°C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | 87 mA |
| Quiescent current (12V) | 0.6 mA |
| Quiescent current (24V) | 0.7 mA |
| Processor architecture | 32 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.157.300.0100 (11573000100) |
IP6K8, NMEA-plug, Wake-up Option via CAN Bus
|
| 1.157.302.0120 (11573020120) |
LIN interface with Master/Slave, IP6K8, NMEA plug, Wake-up Option via CAN Bus or LIN Bus
|
