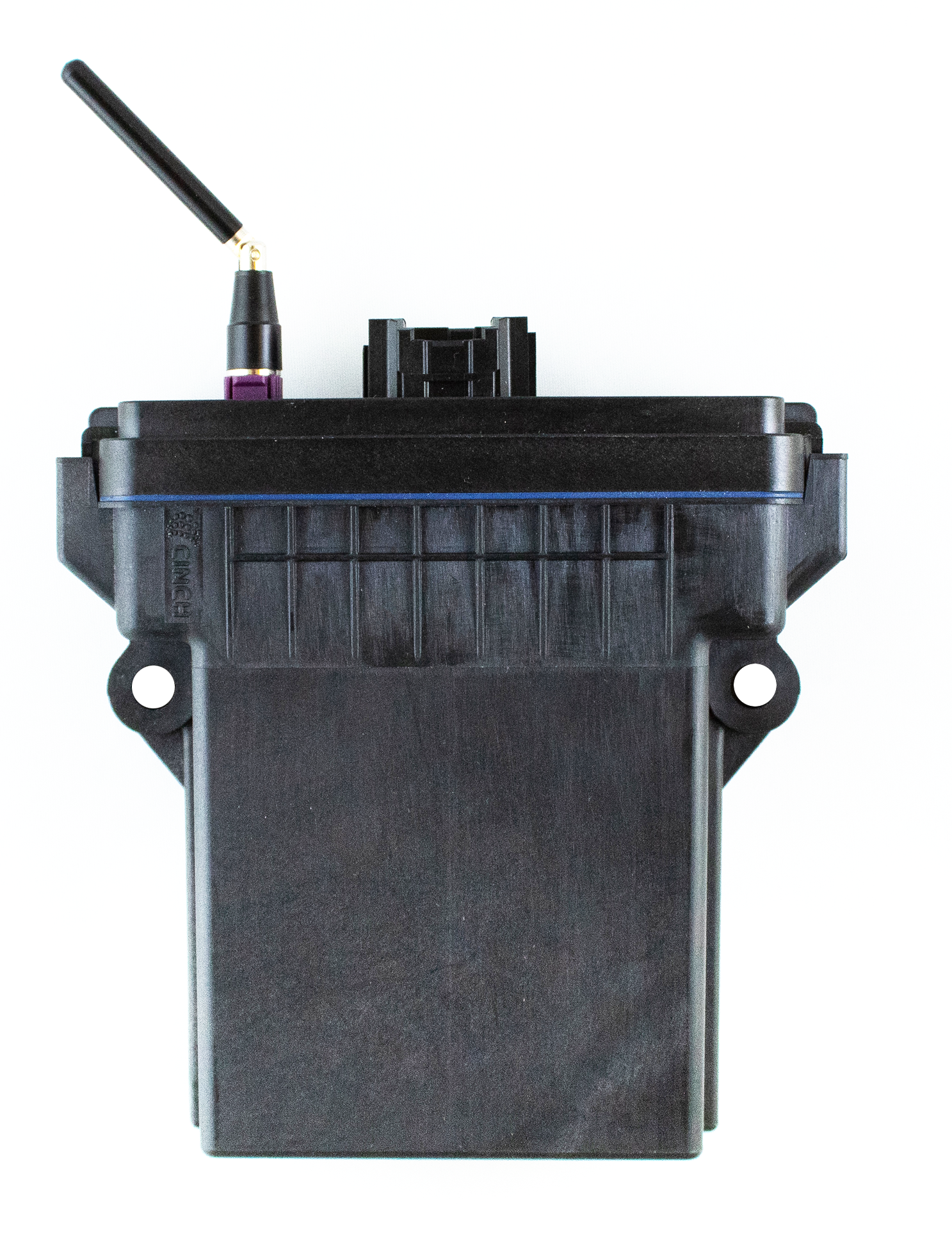

FT15 Fusion Telematic Module
FT15.xxxx.x (FT15xxxxx)
Fusion is a part of our new generation of Connected Products with a powerful 32-bit ARM Cortex-A9 processor. The Fusion comes packed with a rich set of wired and wireless interfaces, including CAN (3x), LIN (2x), Ethernet, I/O (5), LTE, GPS, WiFi, and Bluetooth.
Downloads
Fusion Telematic Module FT15
Technical details
Inputs and Outputs
| In-/Outputs (total) | 9 |
|---|---|
| Inputs (analog) | 5 |
| Outputs (PWM capable) | 4 |
| Outputs (digital) | 4 |
| I/Os (total) | 9 |
| LTE | Yes |
| GPS | Yes |
| Bluetooth | Yes |
| Ethernet | Yes |
| WiFi | Yes |
Interfaces
| CAN interface(s) | 3 |
|---|---|
| LIN interface(s) | 2 |
Mechanical Properties
| IP rating | IP56 |
|---|---|
| Dimensions | 130.3 × 115.4 × 42.3 mm |
Programming
| Programming software | Qt |
|---|
General Information
| Temperature range | -40 to 85 °C |
|---|---|
| Operating voltage | 9-30 V |
| Processor architecture | 32 bit |
