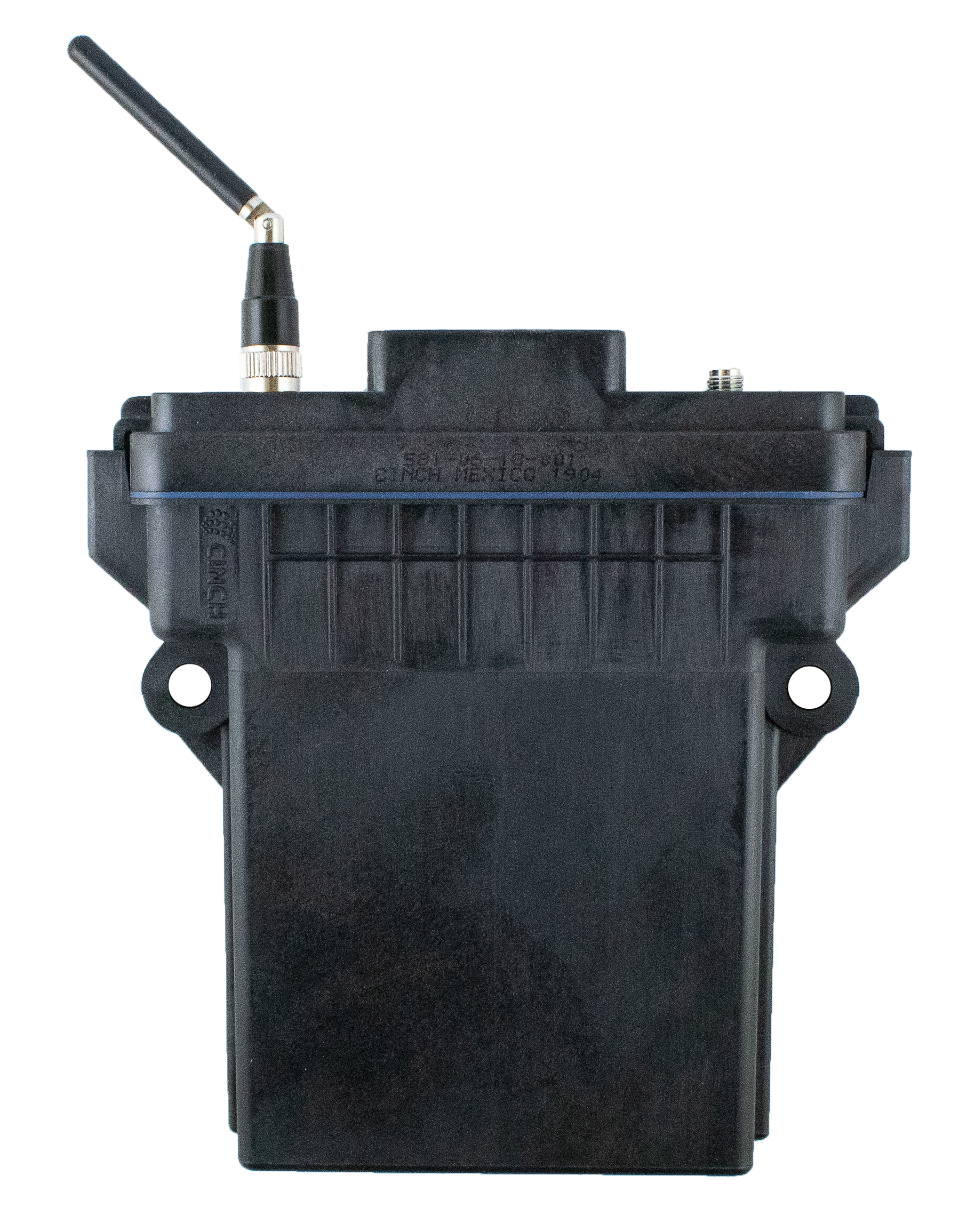

FT10 Fusion Telematic Module
FT10.xxxx.x (FT10xxxxx)
Fusion is a part of our new generation of Connected Products with a powerful 32-bit ARM Cortex-A9 processor. The FT10 model features an IP69k sealed housing. Packed with a rich set of wired and wireless interfaces, including CAN (3x), LIN (2x), Ethernet, I/O (5), LTE, GPS, WiFi, and Bluetooth the Fusion is a very capable telematics solution.
Paired with Spoke.Zone - our Data Management web application you can easily monitor your devices remotely as well as analyze data to increase efficiency, create maintenance schedules, etc.
Downloads
Fusion Telematic Module FT10
Technical details
Inputs and Outputs
| Inputs (total) | 5 |
|---|---|
| Inputs (analog) | 5 |
| Outputs (total) | 4 |
| Outputs (PWM capable) | 4 |
| Outputs (digital) | 4 |
| I/Os (total) | 9 |
| LTE | Yes |
| GPS | Yes |
| Bluetooth | Yes |
| Ethernet | Yes |
| WiFi | Yes |
Interfaces
| CAN interface(s) | 3 |
|---|---|
| LIN interface(s) | 2 |
Mechanical Properties
| IP rating | IP69K |
|---|---|
| Dimensions | 130.3 × 115.4 × 42.3 mm |
Programming
| Programming software | Qt |
|---|
General Information
| Temperature range | -40 to 85 °C |
|---|---|
| Operating voltage | 9-30 V |
| Processor architecture | 32 bit |
