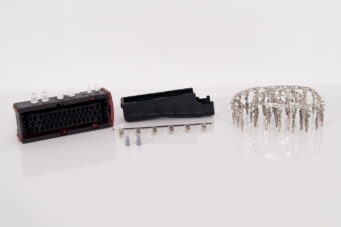

Connector Kit for M2600 ECO CAN PLC & CC27WP

The MRS Connector Package gives you the necessary accessories for the socket connection of your M2600 ECO CAN PLC & CC27WP. In addition to the robust mating connector, the package also includes matching crimp contacts.

Please reach out to our MRS customer service for more information about this product. The proper MRS Programming Cable Set can be found under Accessories or you can create your own with this kit.

Order options

Order no.	Name
108888	Connector Kit for M2600 ECO CAN PLC

Related Product

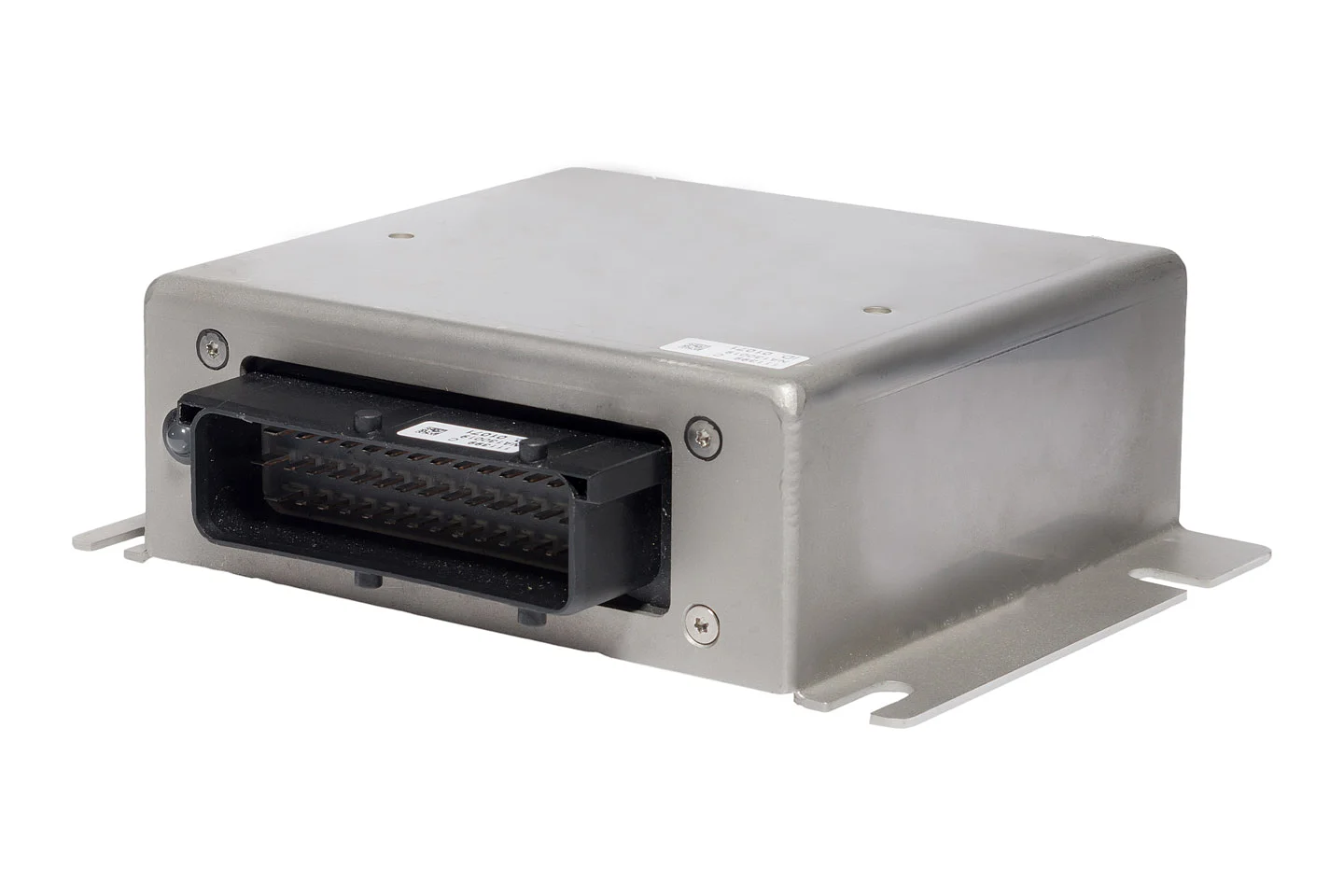

M2600 ECO CAN PLC

Article number : 1.261.x

Operating voltage: 9-32 V
CAN interface(s): 3
In-/Outputs (total): 26
Inputs (total): 14
Outputs (total): 12
IP rating: IP65

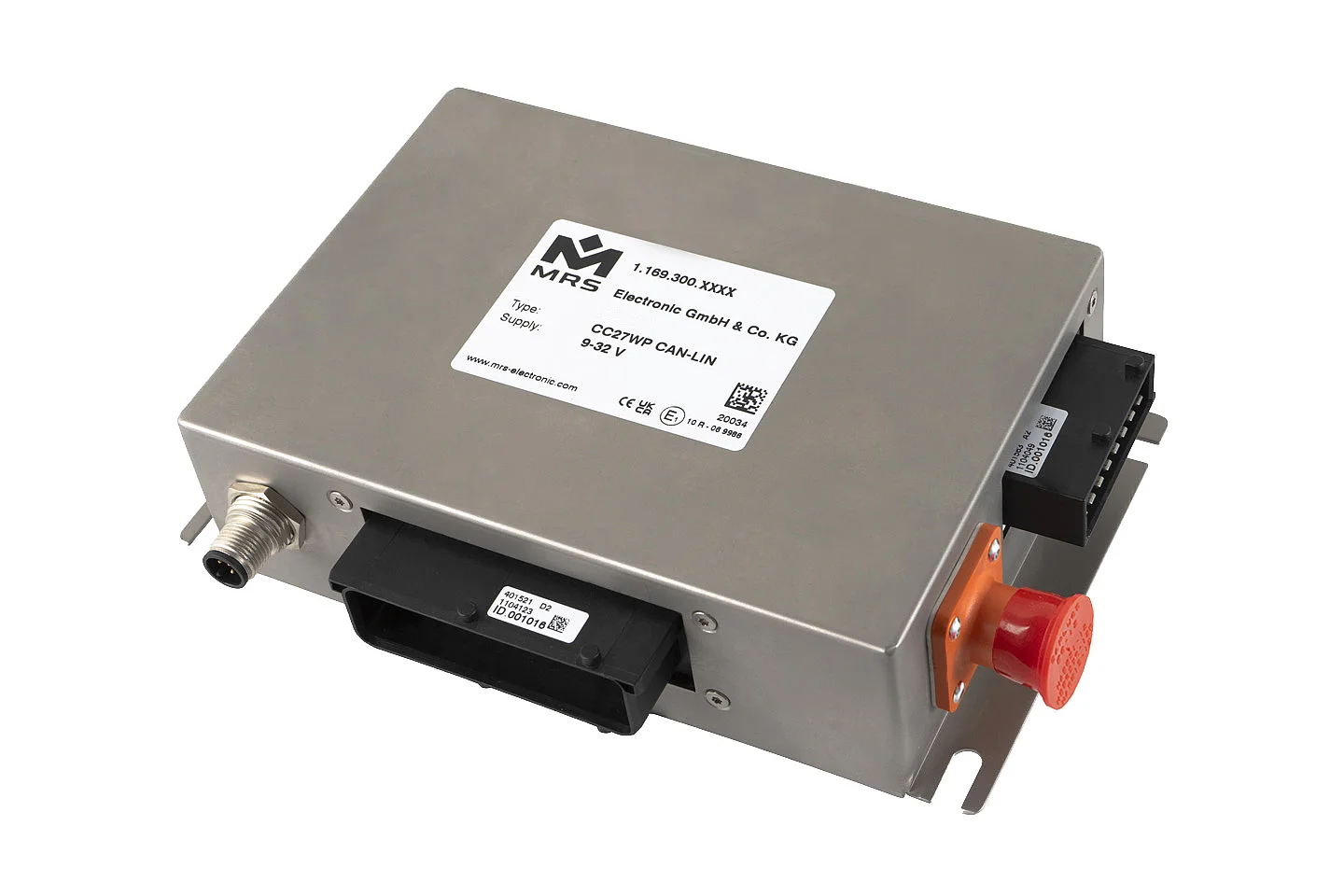

CC27WP

Article number : 1.169

The CC27WP is a powerful and robust 32-bit controller with 27 inputs and outputs as well as 16 freely configurable I/Os with voltage and current diagnostics. The waterproof module is therefore very flexible and can be used in any industry. It is particularly suitable for your vehicles with many loads to be controlled and high load currents, such as ambulance vehicles. The CC27WP continuously detects the current of the consumers and can switch them off when a defined value is exceeded. This means you do not need a classic fuse box. You are also provided with a high degree of flexibility, as motors can also be controlled with the aid of 4 half-bridges and up to 3 CAN interfaces are available for processing or forwarding commands. Due to the use of CAN bus, cabling can also be simplified, e.g. by establishing a direct connection to HMI systems such as displays or control elements.

Operating voltage: 9-32 V
CAN interface(s): 3
In-/Outputs (total): 27
Inputs (total): 7
I/Os (total): 16
IP rating: IP6K8
