Programming Tool Applics Studio

1.​100.​200.​xx (choose order option)

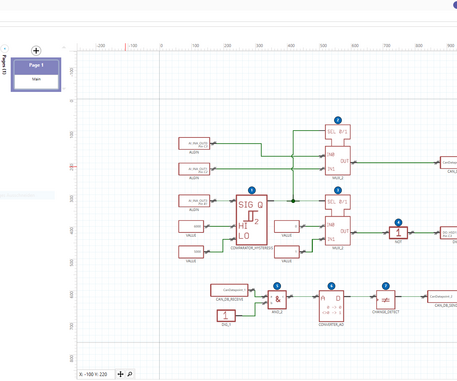

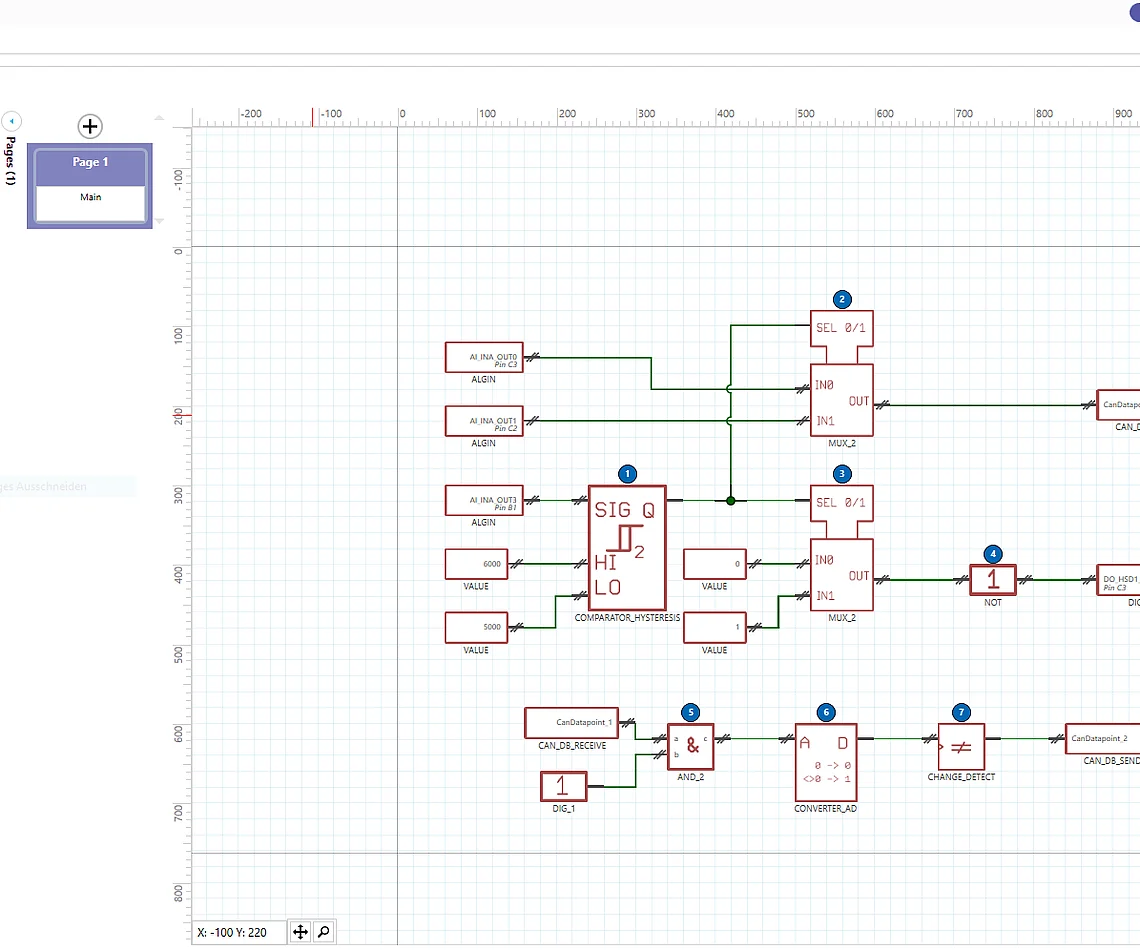

The MRS Applics Studio was developed for the programming of our CAN products. Programming is carried out graphically, or in the case of complex applications, in „C code“ via the easy-to-use user interface. All CAN products have a CAN bootloader that is permanently active on the modules. A new program can be flashed at any time during operation via the bootloader. The graphical programming is similar to the FUP (function diagram) according to IEC61131. For that reason, no extensive programming knowledge is required. A basic knowledge of digital technology is sufficient to create programs with the MRS Applics Studio.

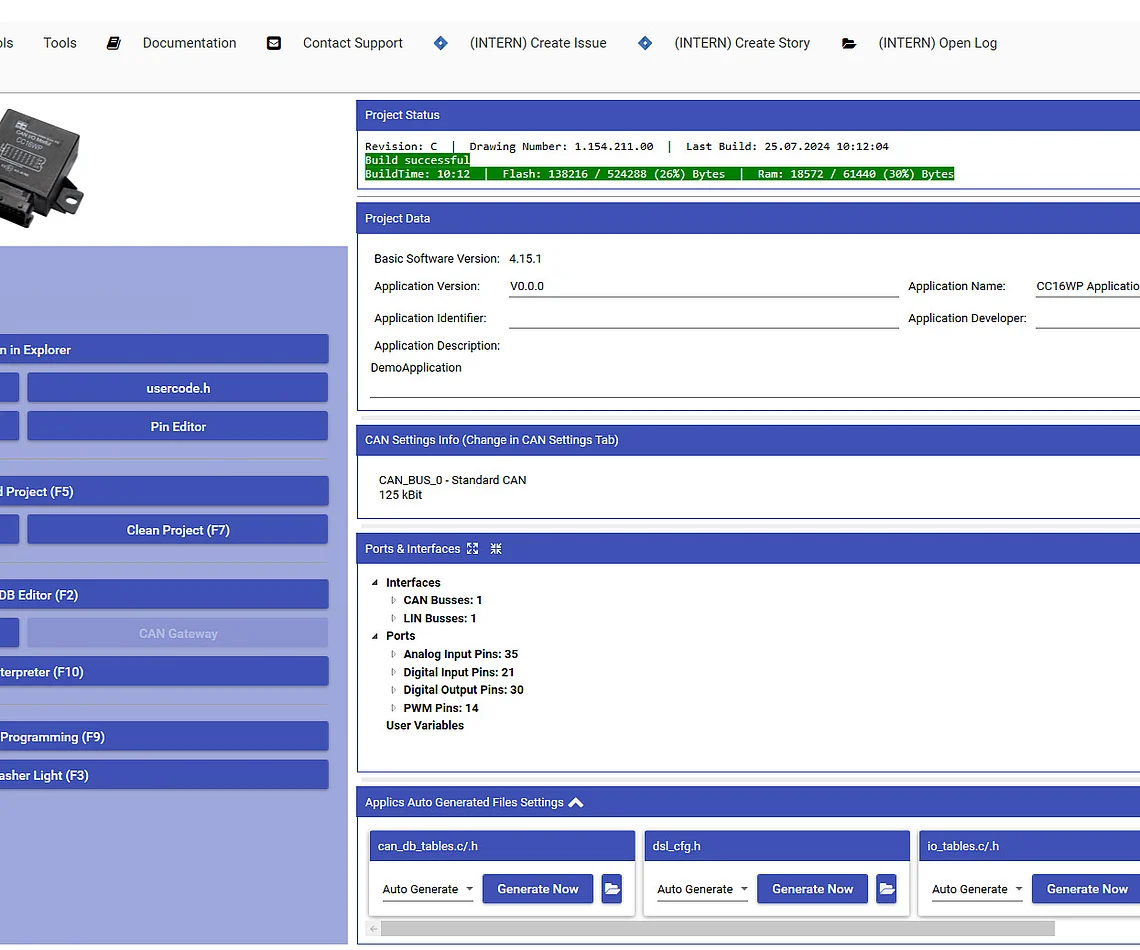

The MRS Applics Stu­dio in­cludes the Eagle graph­i­cal user in­ter­face and the MCU Flas­her. The pro­gram­ming in­ter­face EAGLE by CAD-So­ft is no longer part of our soft­ware. You can dowload the cur­rent ver­sion of CAD-Soft EAGLE ver­sion 8 ac­cord­ing to your needs di­rectly at Au­todesk. Here you can de­cide which EAGLE li­cense you need. You can choose be­tween free, stan­dard and pre­mium-ver­sion. The MCU Flas­her also supports uploading of files (.s19) which were created with Codewarrier. An individual Codewarrier license is only required if the code size exceeds 32 kB. A new .s19-File can be uploaded (flashed) via the USB-CAN interface and CAN boot­loa­der. Com­pat­i­ble USB CAN in­ter­faces are PEAK IPEH-002021, Vec­tor VN16XX and Sont­heim CAN­fox.

Name Type Order no.
MRS Applics Stu­dio Bund­le MRS Applics Stu­dio Software with PCAN USB In­ter­face 1.​100.​200.​00
MRS Applics Stu­dio MRS Applics Stu­dio Software without PCAN USB In­ter­face 1.​100.​200.​01
