Universal Gateway 5x CAN

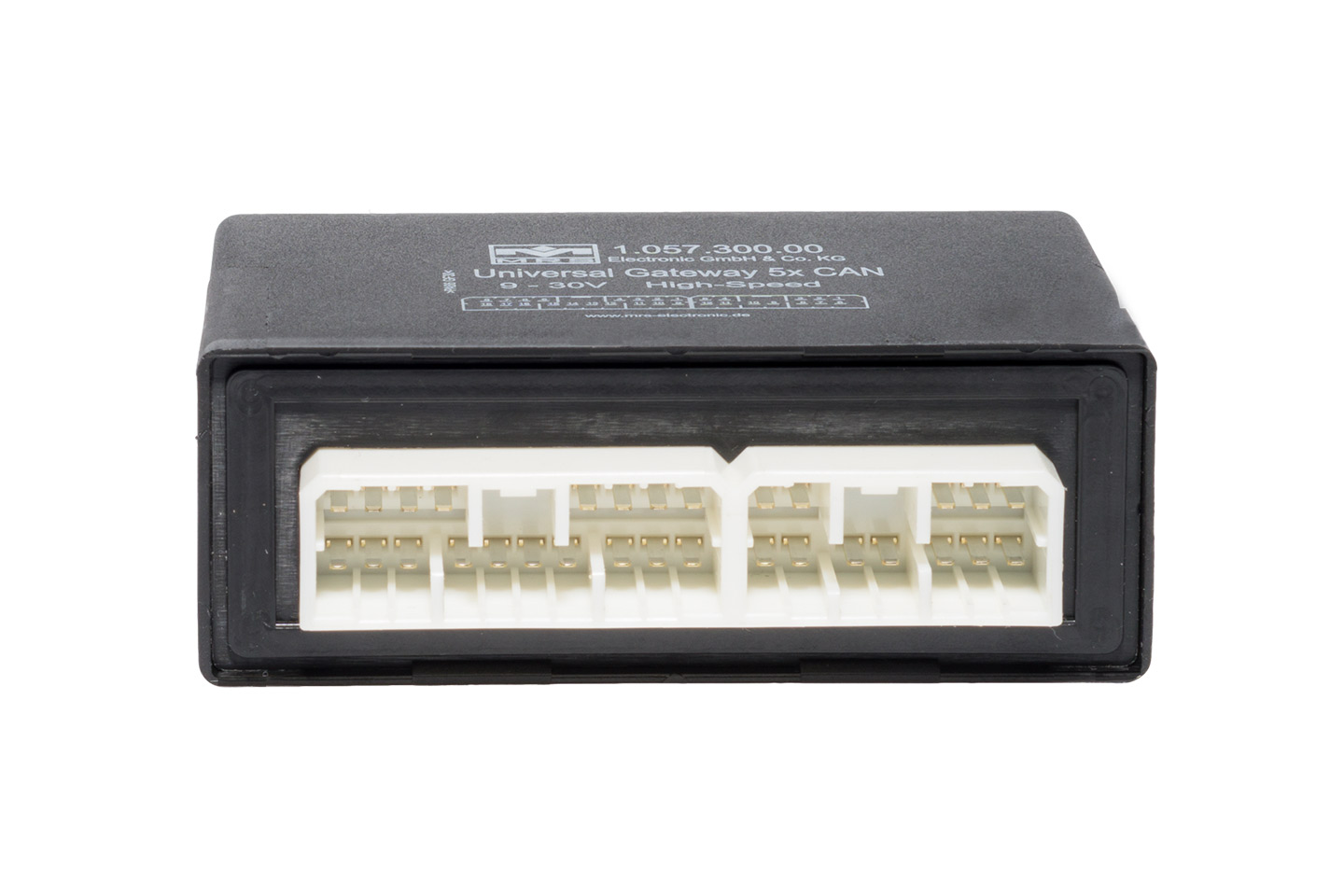

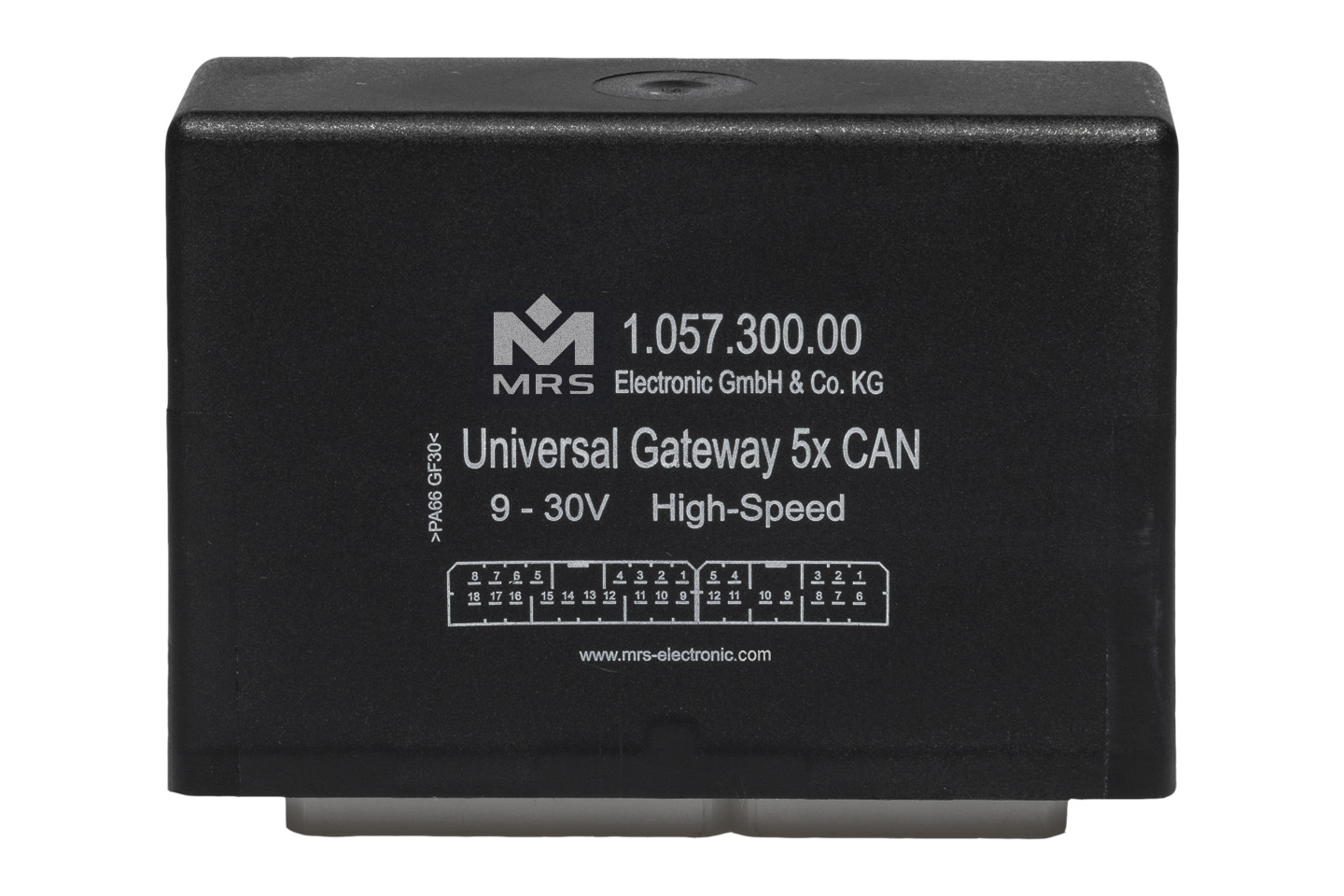

1.057.3xx.xxE ( choose order option )(10573xxxxE)The Universal Gateway 5x Can by MRS allows data exchange between CAN-Bus systems. The open and flexible design, tailored to automotive applications, allows a quick adaptation to customer-specific requirements even for small quantities.
| Name | Value |
|---|---|
| Weight | 110 g |
| Dimensions | 95 × 65 × 35 mm |
| Housing material | Plastic |
| Connector type | 070 Multilock |
| In-/Outputs (total) | 9 |
| Operating voltage | 9-30 V |
| Protection class | IP54 |
| Type-approval number | 05 7258 |
| Type-approval | E1 - ECE R10 |
| Protocols | CAN Interface 2.0 A/B ISO 11898-2, SAE J1939 |
| Name | Value |
|---|---|
| Number of pins | 30 |
| In-/Outputs (total) | 9 |
| Inputs (total) | 5 |
| Inputs (digital) | 4 |
| Inputs (analog) | 1 |
| Outputs (total) | 4 |
| Outputs (digital) | 4 |
| Processor family | Freescale HCS12 |
| Processor | 16 bit |
| CAN interfaces | 5 |
| Temperature range | -40 to 85 °C |
| Protection class | IP54 |
| Operating voltage | 9-30 V |
| Current consumption ( ≤ ) | 200 mA |
| Quiescent current (24V) | 3.2 mA |
| Quiescent current (12V) | 120 µA |
| Programming system | MRS Developers Studio |
| Frequency inputs | 4 |
| Name | Model | Order no. | ||
|---|---|---|---|---|
| Universal Gateway 5x CAN | Housing without side-flaps | 1.057.300.0000E | ||
| Universal Gateway 5xCAN FREQ + CAN-WU + LIN | With frequency inputs and LIN, CAN Wake UP | 1.057.300.0203E | ||
| Universal Gateway 5xCAN ohne WU KL15 | Wake-up via KL15 | 1.057.300.0303E |
| Required accessories | Article number | |
|---|---|---|
| Softwaretool MRS Developers Studio Bundle | 1.100.100.09 | |
| PCAN-USB Interface | 105358 | |
| Cable set to program Universal Gateway 5x CAN | 109260 | |
| Connector Kit for Universal Gateway 5x CAN | 109203 | |
| Cable FLRY 2 x 0.50 mm² white/green SL20 | 113085 |
