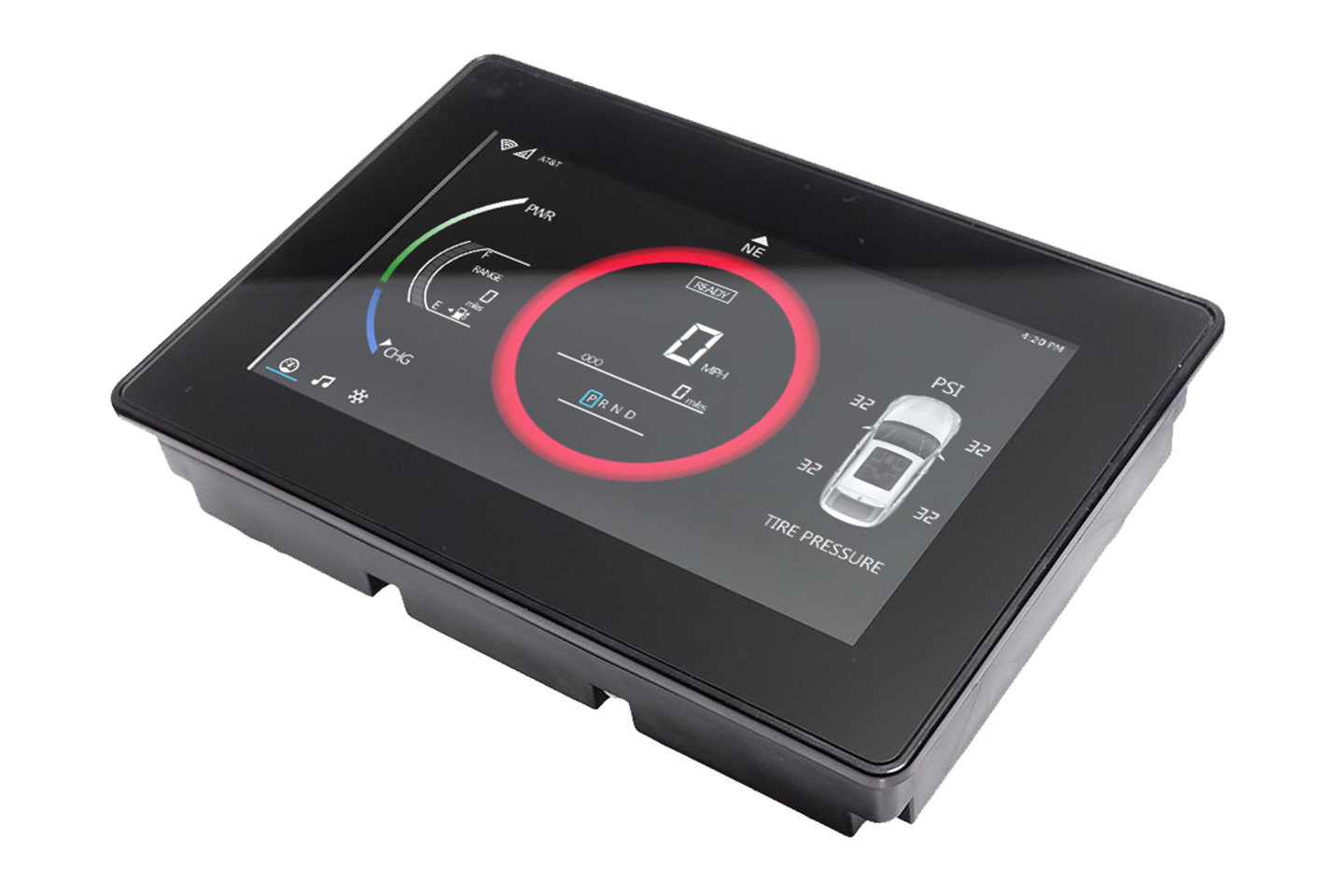

MConn Display - Connected CAN Display
go to order options (1145x)

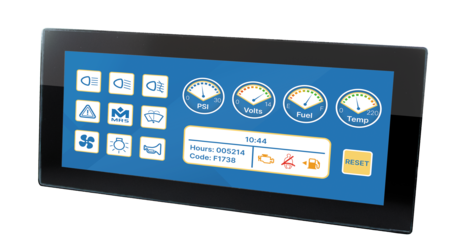

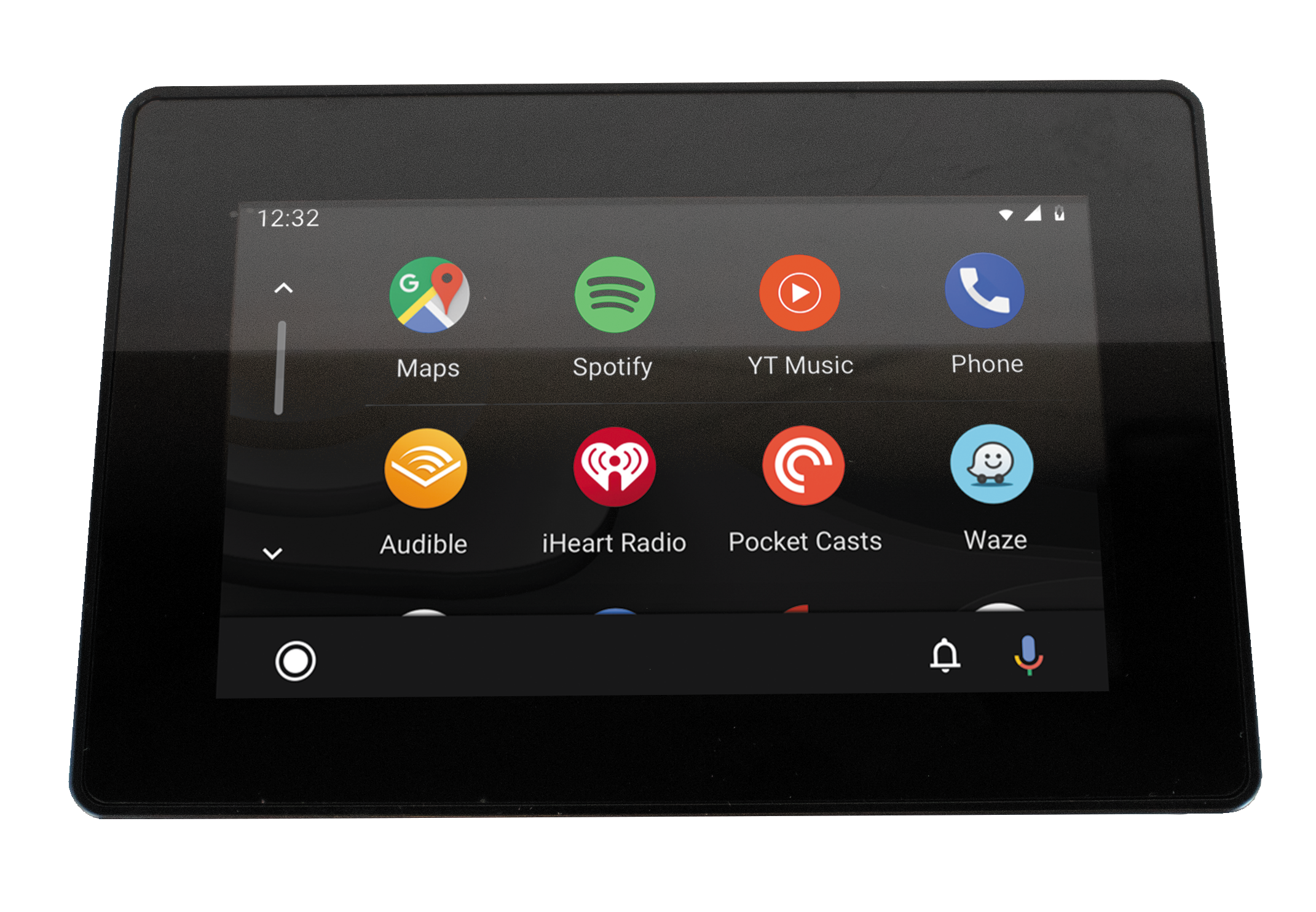

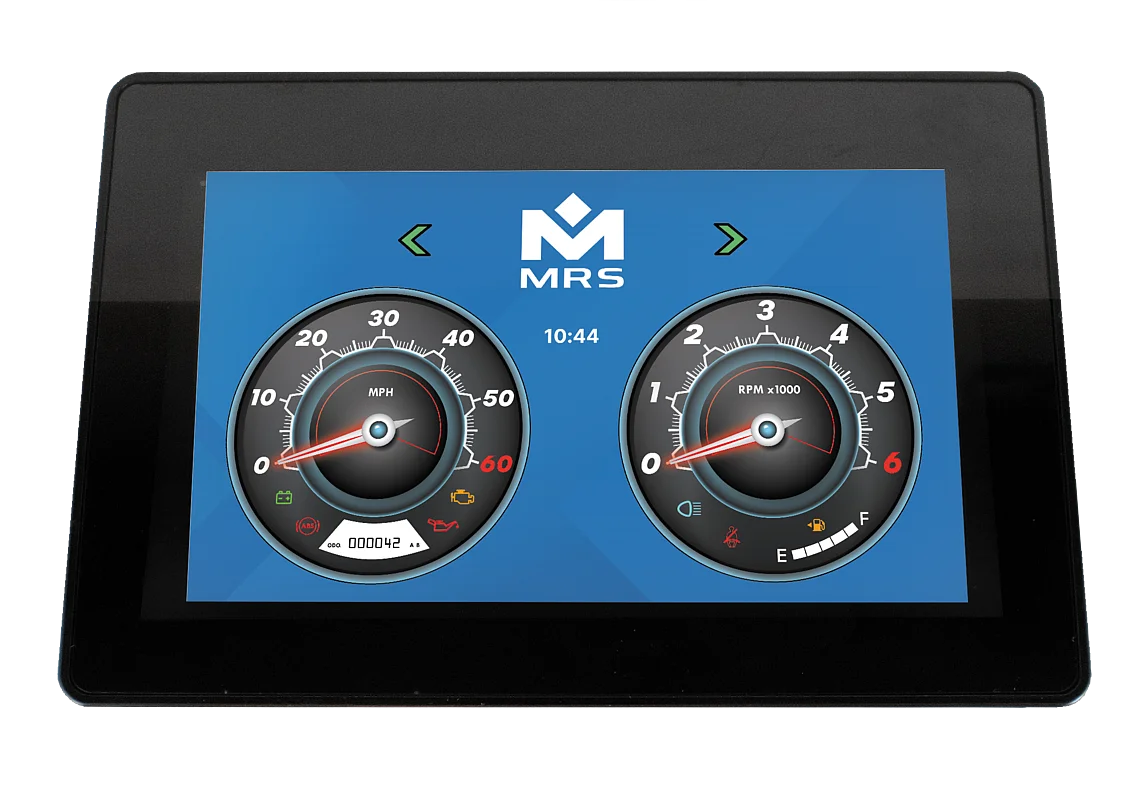

MConn is part of our HMI systems with a powerful 32-bit quad-core ARM Cortex-A9 processor with 2D, 3D and vector graphics hardware acceleration. The display can be programmed according to your requirements for Embedded Linux, Android, QNX or WEC7. Thanks to the multi-touch PCAP touch screen, you can use functions such as pinch-to-zoom, rotation, flick and much more.

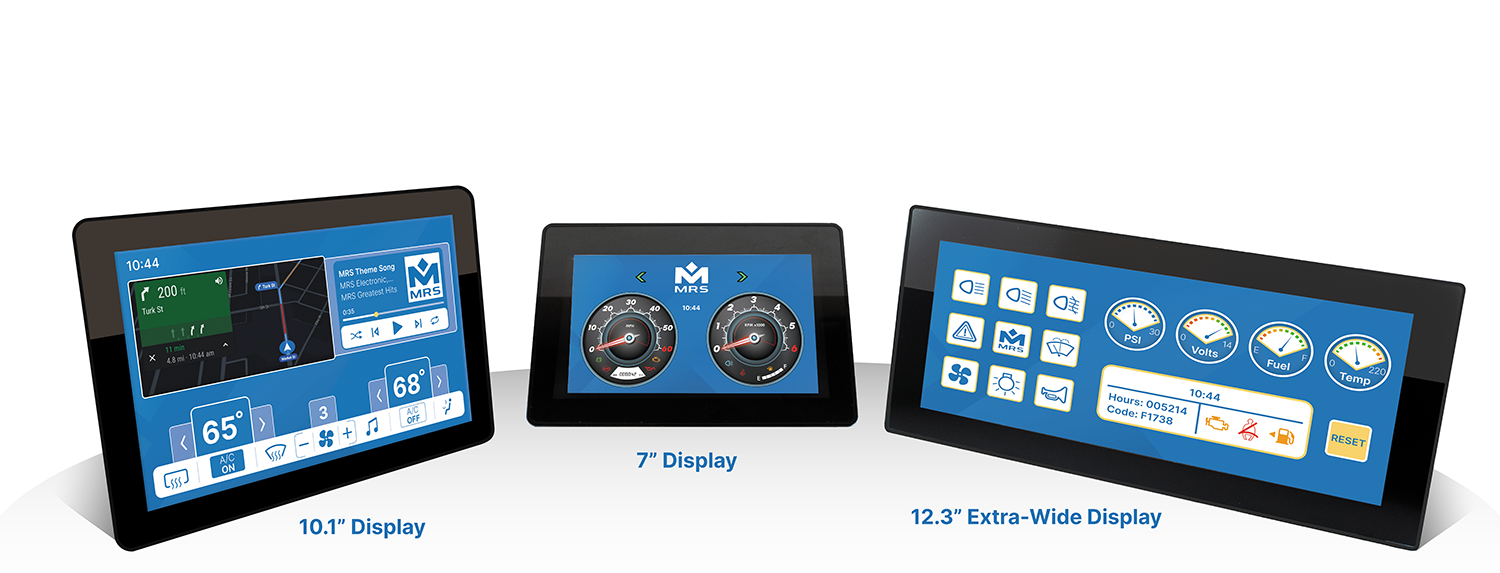

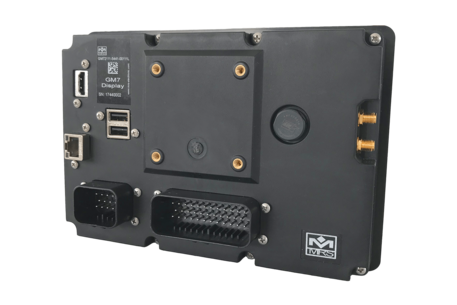

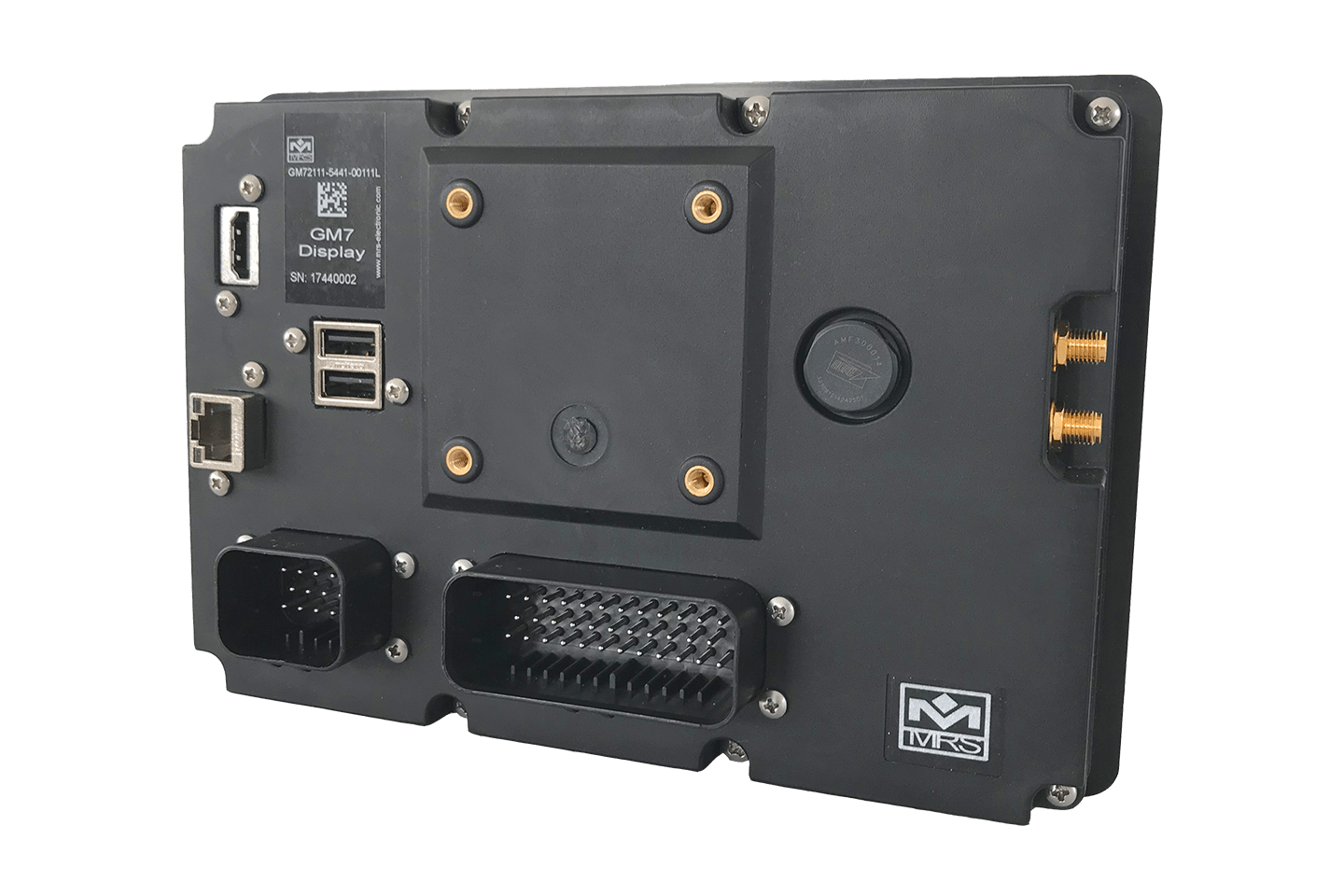

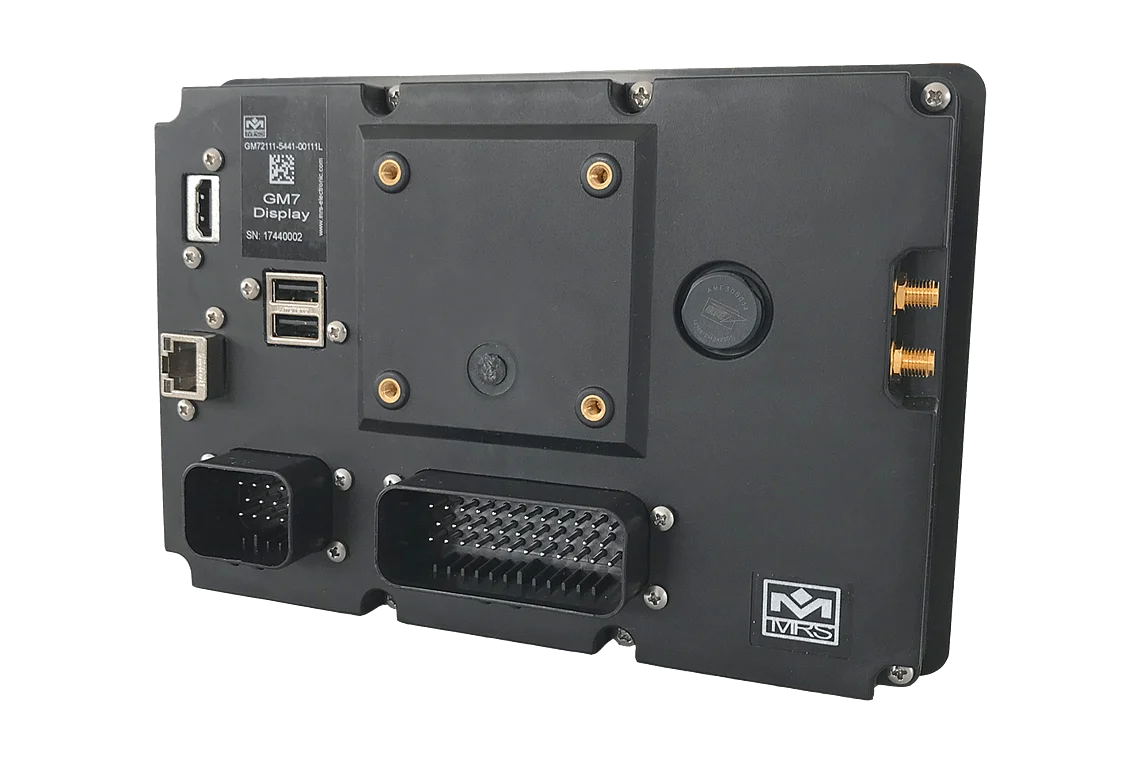

The MConn is more than just a display. It is equipped with numerous wired and wireless interfaces, including CAN (2x), LIN, Ethernet, USB (2x), audio, camera inputs (4x), I/O (22), 3G/LTE, GPS, WiFi and Bluetooth. As with all MRS connectivity products, the data can be read and evaluated via the SpokeZone. The MConn is available in a variety of display sizes, please reach out for more details!
Downloads
Technical details
Inputs and Outputs
| Inputs (total) | 18 |
|---|---|
| Inputs (analog) | 6 |
| Inputs (digital) | 12 |
| Outputs (total) | 4 |
| Outputs (digital) | 4 |
| I/Os (total) | 22 |
| I/Os (Input analog) | 6 |
| I/Os (Input digital) | 12 |
Interfaces
| CAN interface(s) | 2 |
|---|---|
| LIN interface(s) | 1 |
Mechanical Properties
| IP rating | IP54 / IP65 (optional) |
|---|---|
| Housing material | ABS |

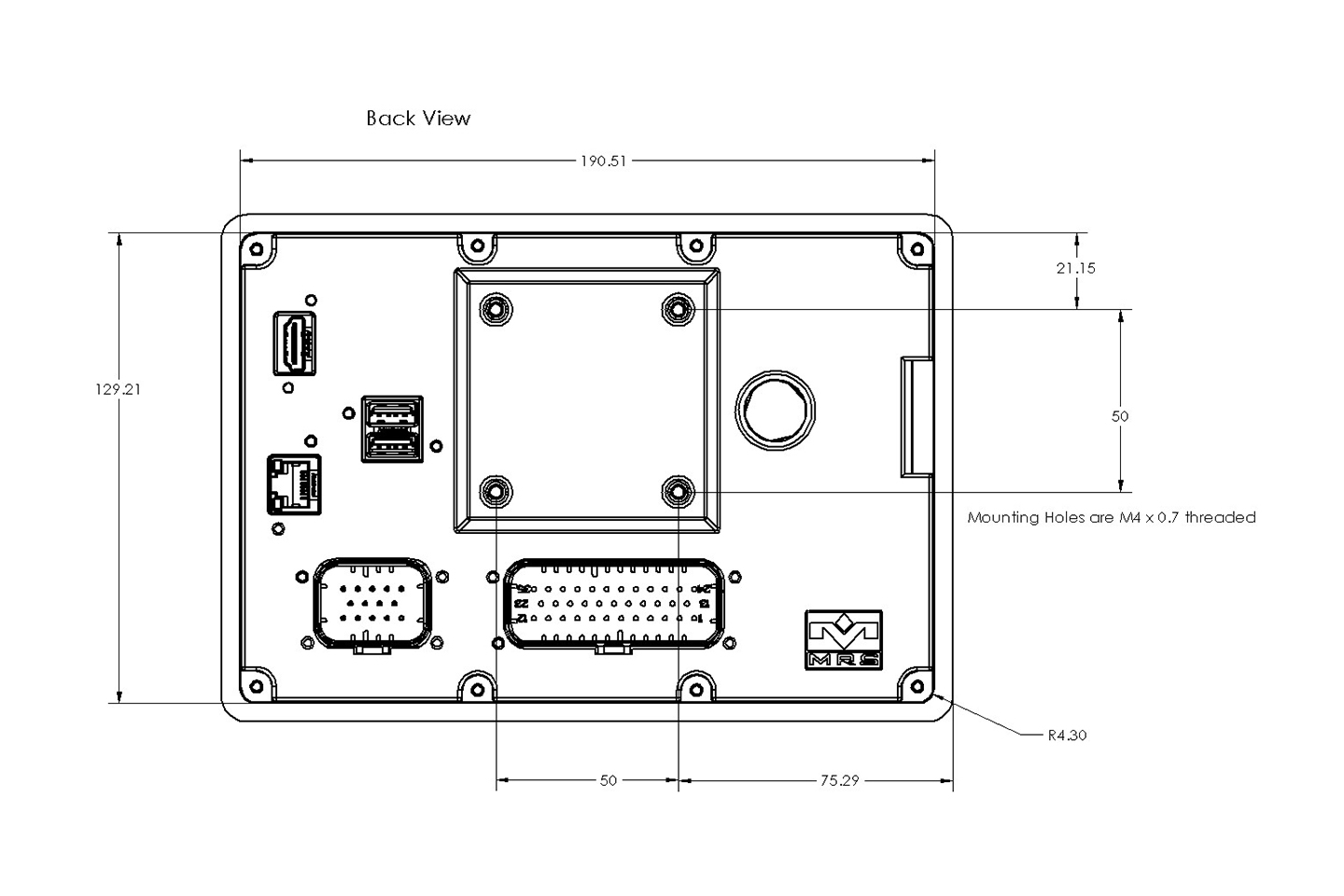

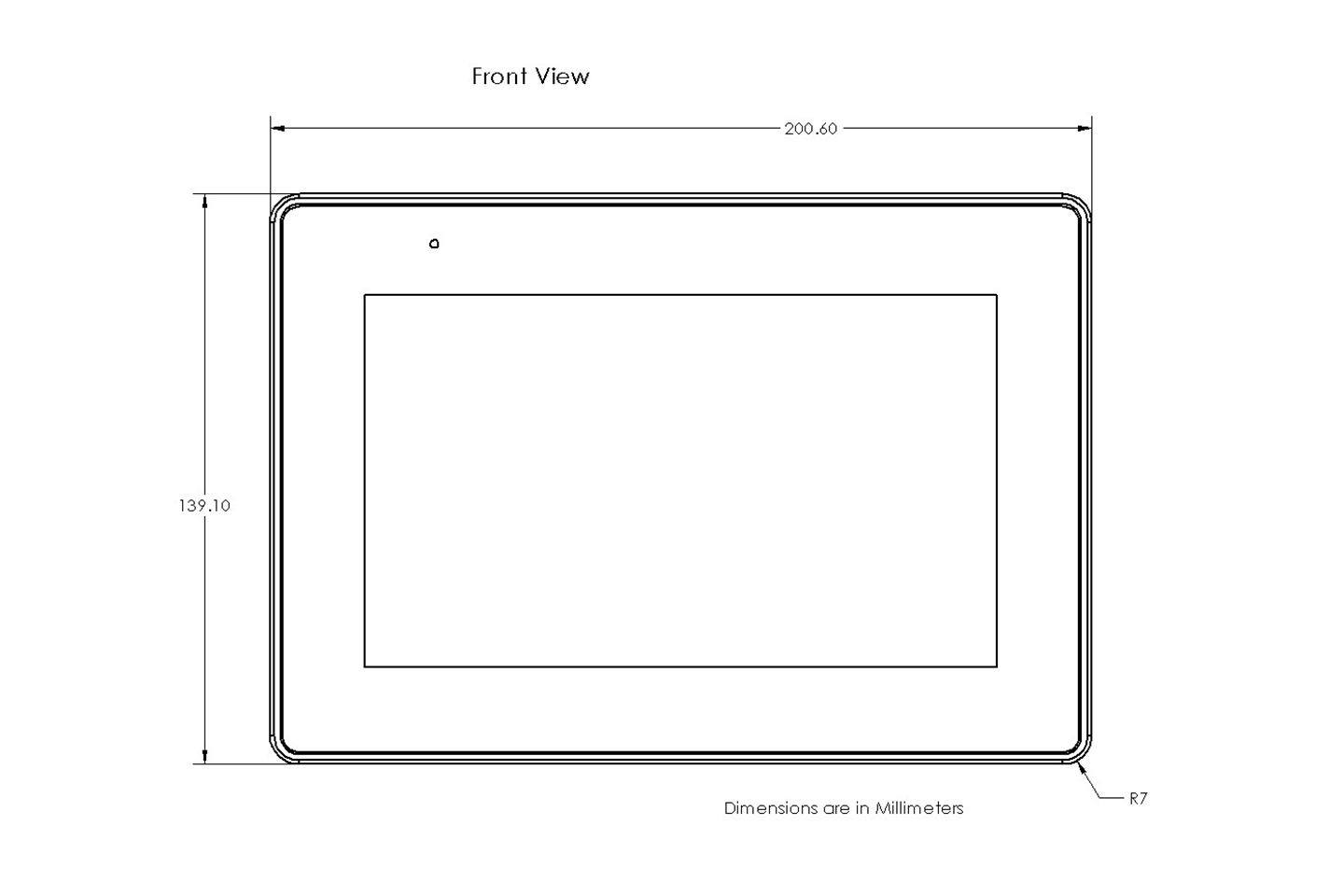

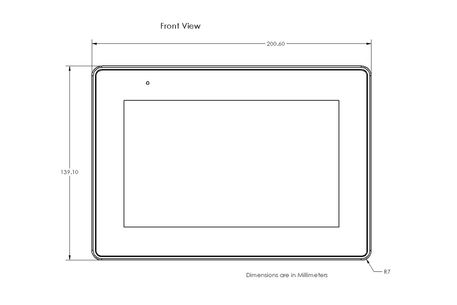

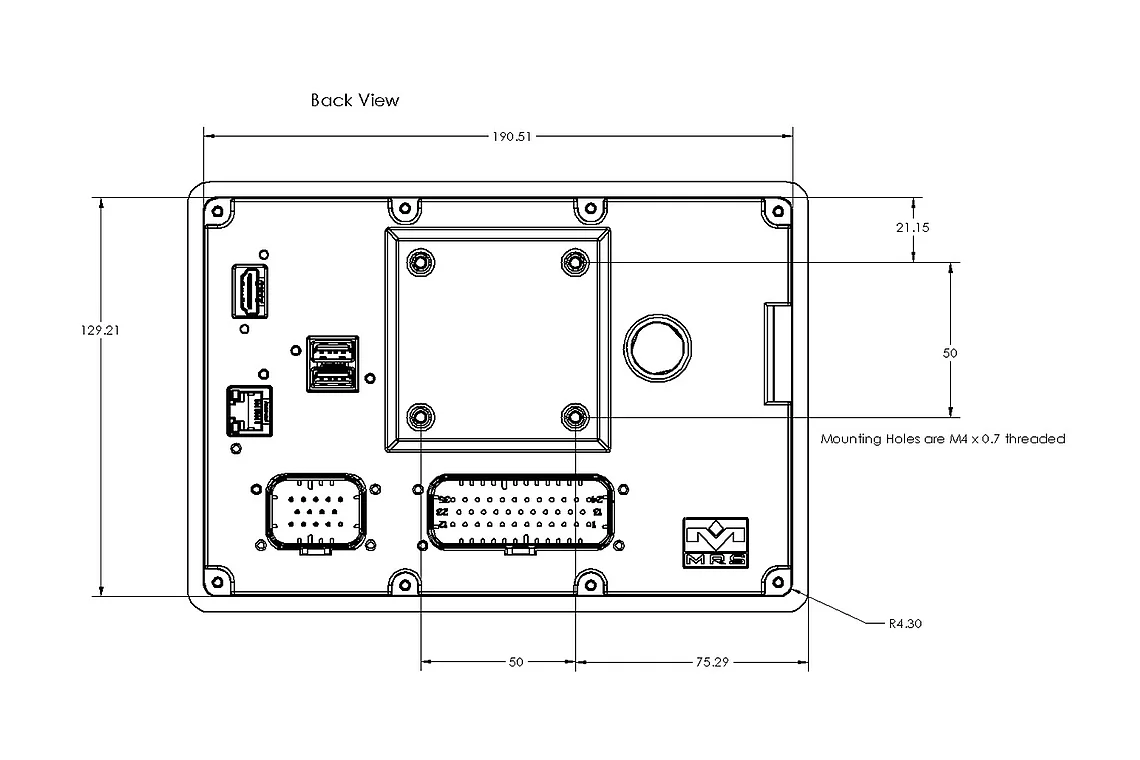

| Dimensions | 200.6 × 139.1 × 35 mm |
Programming
| Programming software | Qt |
|---|
General
| Temperature range | -20 to +70°C |
|---|---|
| Operating voltage | 9-32 V DC |
| Processor architecture | 32 bit |
Order options
| Order no. | Name |
|---|---|
| Standard |
Standard Display Configuration
|
| Cameras Edition |
Cameras Edition Configuration
|
| Infotainment Edition |
Infotainment Edition Configuration
|
| Evaluation Display |
Evaluation Display Configuration
|
| Full Feature |
Full Feature Configuration
|
| Custom |
Custom Display Configuration
|
