CAN Gateway Module

1.042.1xx.xxE (choose order option)

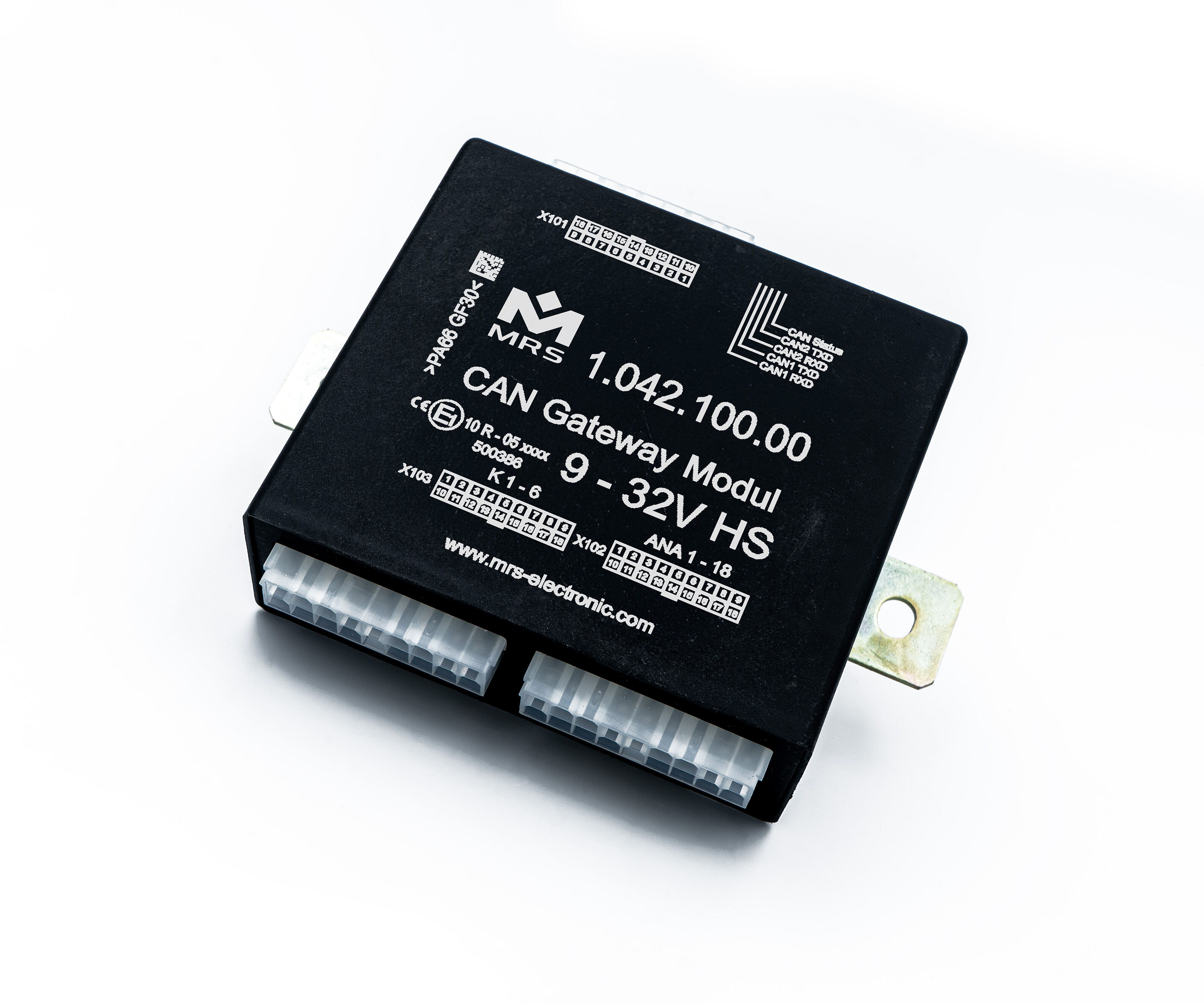

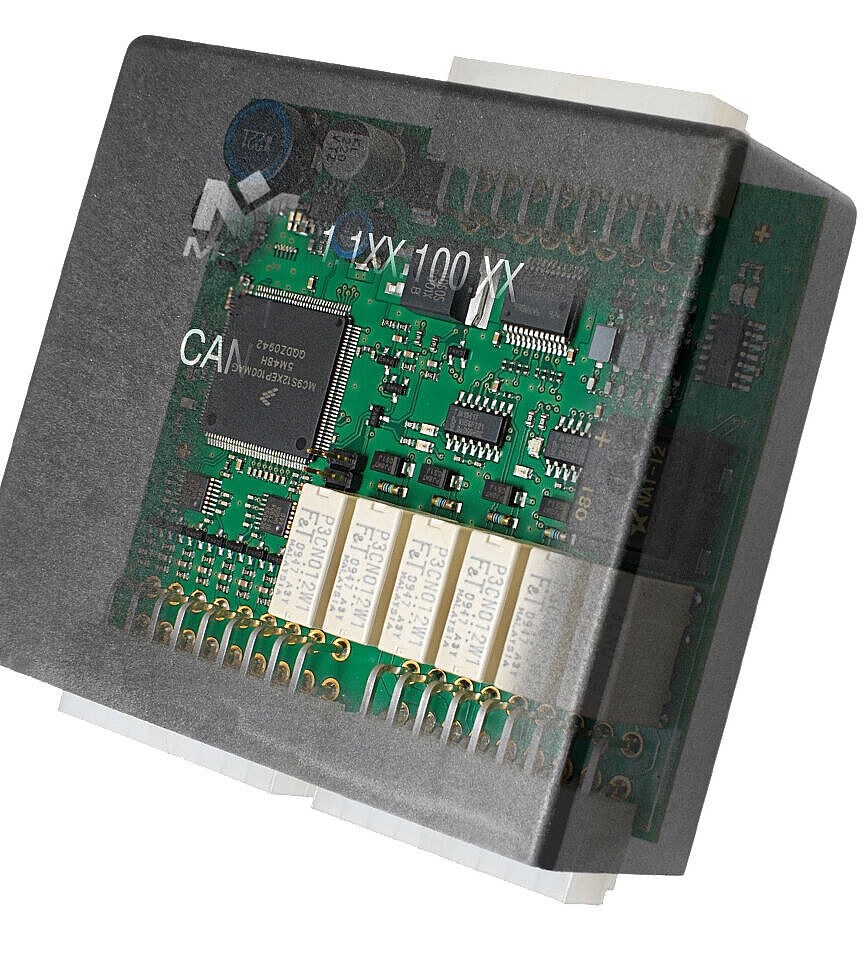

The compact car-compatible can gateway module with PLC function is used for the simple expansion of existing vehicle functions with low wiring requirements. It is freely programmable and equipped with 3 can interfaces.

NameValue
Dimensions 89 × 95 × 35 mm
Housing material Plastic
Connector type 3x 18-poliger Molex Mini Fit Junior
Type-approval number 05 6588
Type-approval UNECE R 10 Rev.05.
In-/Outputs (total) 30
Protection class IP53
Protocols CAN Interface 2.0 A/B ISO 11898-2, SAE J1939
NameValue
Number of pins 54
In-/Outputs (total) 30
Inputs (total) 20
Inputs (analog) 20
Outputs (total) 10
Outputs (digital) 4
Relay outputs 6
Processor family Freescale HCS12
Processor 16 bit
CAN interfaces 3
Temperature range -40 to 85 °C
Programming system MRS Developers Studio
Quiescent current (24V) 0.6 mA
Quiescent current (12V) 0.3 mA
Name Model Order no.
CAN gate­way mod­ule HS 3 x high-speed 1.​042.​100.​00E
CAN gate­way mod­ule LS 2 x low-speed, 1 x high-speed 1.​042.​110.​00E
Required accessoriesArticle number
Softwaretool MRS Developers Studio Bund­le 1.​100.​100.​09
Starter Kit - CAN Gateway Module 1.​100.​110.​17
PCAN-USB Interface 105358

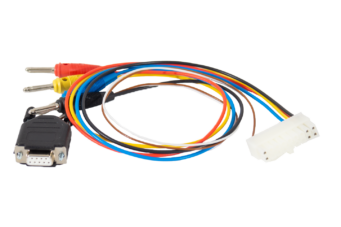

Cable set to program CAN Gateway Module / CAN Relay Box 109639
Connector Kit CAN Gateway Module / CAN Relay Box 109637
Cable FLRY 2 x 0.50 mm² white/green SL20 113085

Is the load-side power supply running via KL30 or KL15?

The supply of the module runs over the KL30.
The KL15 is for the ignition pulse.

Can the HSD outputs also measure the current?

Yes, the HSD has the Current Sense. In MRS Developers Studio at
Select the names I / O's output A_STAT_HSD0 to A_STAT_HSD3

Are the HSD outputs internally secured?

Yes, if the driver gets too hot then it switches off automatically (thermal protection).
