MicroPlex® 1HB

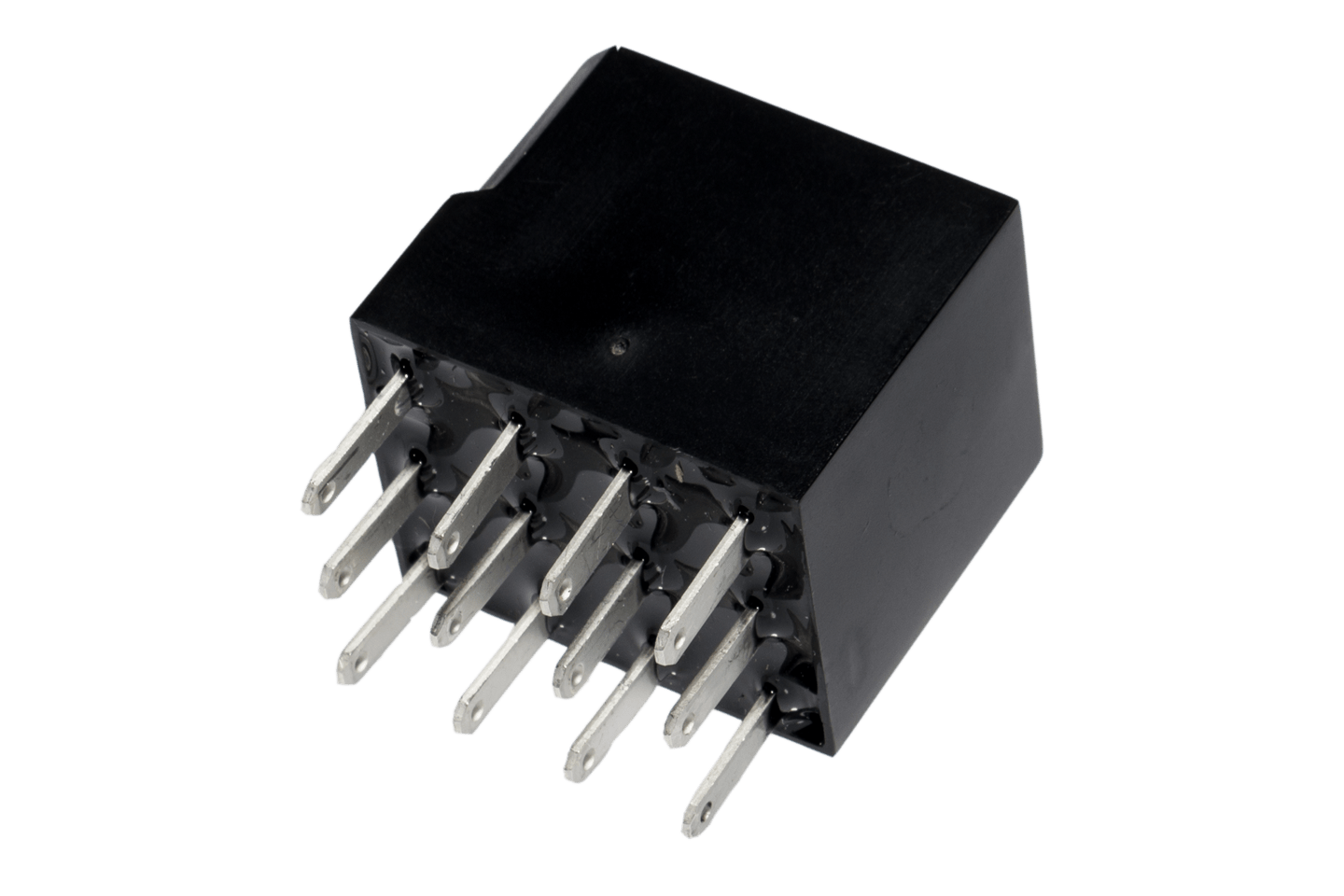

1.137.300.00 ( choose order option )(113730000)Our MicroPlex 1HB is the smallest Motor Controller in the MRS product line, given its small size and easy installation, it offers a wide range of applications. It has 12 pins with a CAN interface.
| Name | Value |
|---|---|
| Weight | 56.69 g |
| Dimensions | 30.48 × 23.5 × 25.9 mm |
| Housing material | PA66 Nylon |
| Operating voltage | 9-30 V |
| Protection class | IP67 |
| Name | Value |
|---|---|
| Number of pins | 12 |
| Inputs (total) | 5 |
| Inputs (digital) | 5 |
| Inputs (analog) | 4 |
| Outputs (total) | 2 |
| Outputs (digital) | 2 |
| Processor family | NXP |
| Processor | 8 bit |
| CAN interfaces | 2 |
| Temperature range | -40 to 85 °C |
| Operating voltage | 9-30 V |
| Current consumption | 60 mA |
| Programming system | MRS Developers Studio |
| Quiescent current (24V) | 124 µA |
| Quiescent current (12V) | 50 µA |
| Name | Type | Order no. | ||
|---|---|---|---|---|
| 1.137.300.00, MicroPlex 1HB | 1HB | 1.137.300.00 |
| Required accessories | Article number | |
|---|---|---|
| Single MicroPlex Socket - Sealed - Coming Soon | xxx | |
| Single MicroPlex Socket - Basic | M111036 | |
| Software programming tool MRS Developers Studio | 1.100.100.xx | |
| Cable Set to Program MicroPlex | M110594 | |
| Connector Kit for MicroPlex Series | M111075 |
