The MicroPlex™ Family Keeps Growing

Created by Luiza Evora Mota | |   Products

If you have been on the MicroPlex™ page on our website lately, you might have noticed that we have a new addition to our MicroPlex™ family: The MicroPlex™ SSR30...

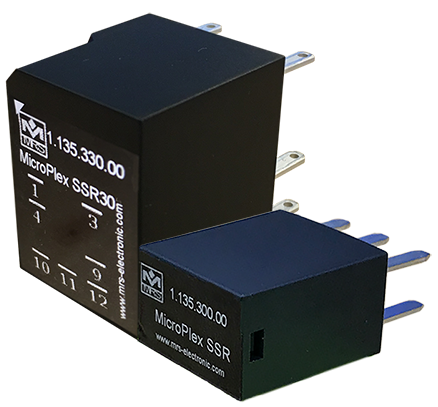

If you have been on the MicroPlex™ page on our website lately, you might have noticed that we have a new addition to our MicroPlex™ family: The MicroPlex™ SSR30.

The MicroPlex™ SSR30 is a more powerful version of the MicroPlex™ SSR18. The new addition has a footprint of two ISO 280 micro solid state relays and a current rating of up to 30 A.

Both MicroPlex™ SSR18 and SSR30 are designed to interface seamlessly with the MicroPlex™ family of controllers to create a smart and state-of-the-art multiplex system. When used with one or more MicroPlex™ controllers, the MicroPlex™ SSRs improve the abilities of the multiplex system by allowing users to measure current and perform diagnostics. The smart solid state relays recognize short circuit to ground, over temperature as well as open loads.

Both versions can also be used as stand-alone relays to provide users with the ability to switch applications on or off without any contact failures. Along with that, the two versions are PWM capable with frequency up to around 200 Hz.



SSR18 Properties:



  • Dimensions: 22 x 15 x 36.36 mm
  • Weight: 12 g
  • IP Class IP67 when used with IP67 ISO 280 Fuse and Relay Box Housing
  • Footprint: ISO 280 Relay form factor



SSR30 Properties:



  • Dimensions: 30.4 x 23.6 x 36.34 mm
  • Weight: Approx. 24 g
  • IP Class IP67 when used with IP67 ISO 280 Fuse and Relay Box Housing
  • Footprint: Side by side 2x ISO 280 Relay form factor









If you would like to learn more information about the MicroPlex™ SSR18 and the MicroPlex™ SSR30, contact our team at info@mrs-electronic.com.
